1-6 products from 6

$WPPlaceHolder_30710$

GSR Tool Holder with spirit level No.1 M3-M10

13,15 €

incl. VA, excl. shipping costs

GSR Tool Holder with spirit level No.2 M5-M12

19,88 €

incl. VA, excl. shipping costs

GSR Tool Holder with spirit level No.10 M3-M10

22,49 €

incl. VA, excl. shipping costs

GSR Tool Holder with spirit level No.20 M5-M12

24,06 €

incl. VA, excl. shipping costs

toolholder with ratchet Nr. 3 with level vial GSR

109,72 €

incl. VA, excl. shipping costs

adjustable mini tap wrench M1-M3 with centering eye

27,62 €

incl. VA, excl. shipping costs

GSR tool holders with ratchet and centering eye
New and further developed

GSR tool holders with centering eye

Our tool holders with ratchet and centering eye ensure a secure hold and a straight start. The recessed spirit level in the head helps you align the tap vertically, for a perpendicular start and clean threads from M 3 to M 20.

We have further developed our tool holders with precisely matched components and deburred edges, making them comfortable and safe to handle. Every batch is tested with at least 5,000 ratchet cycles at constant torque.

Three versions for your requirements

Which tool holder fits?

1
Thread size or square
or
2
Version
3
Length

All GSR tool holders at a glance

SizeThreadsSquareLengthItem no.
No. 1M 3 – M 102.5 – 5.5 mm85 mmB00612020View product
No. 2M 5 – M 124.5 – 8.0 mm100 mmB00612030View product
No. 3M 13 – M 208.5 – 12.5 mm116 mmB00612060View product
No. 10 longM 3 – M 102.5 – 5.5 mm250 mmB00614020View product
No. 20 longM 5 – M 124.5 – 8.0 mm300 mmB00614030View product
SizeThreadsSquareLengthItem no.
No. 1M 3 – M 102.5 – 5.5 mm85 mmB00612120View product
No. 2M 5 – M 124.5 – 8.0 mm110 mmB00612130View product

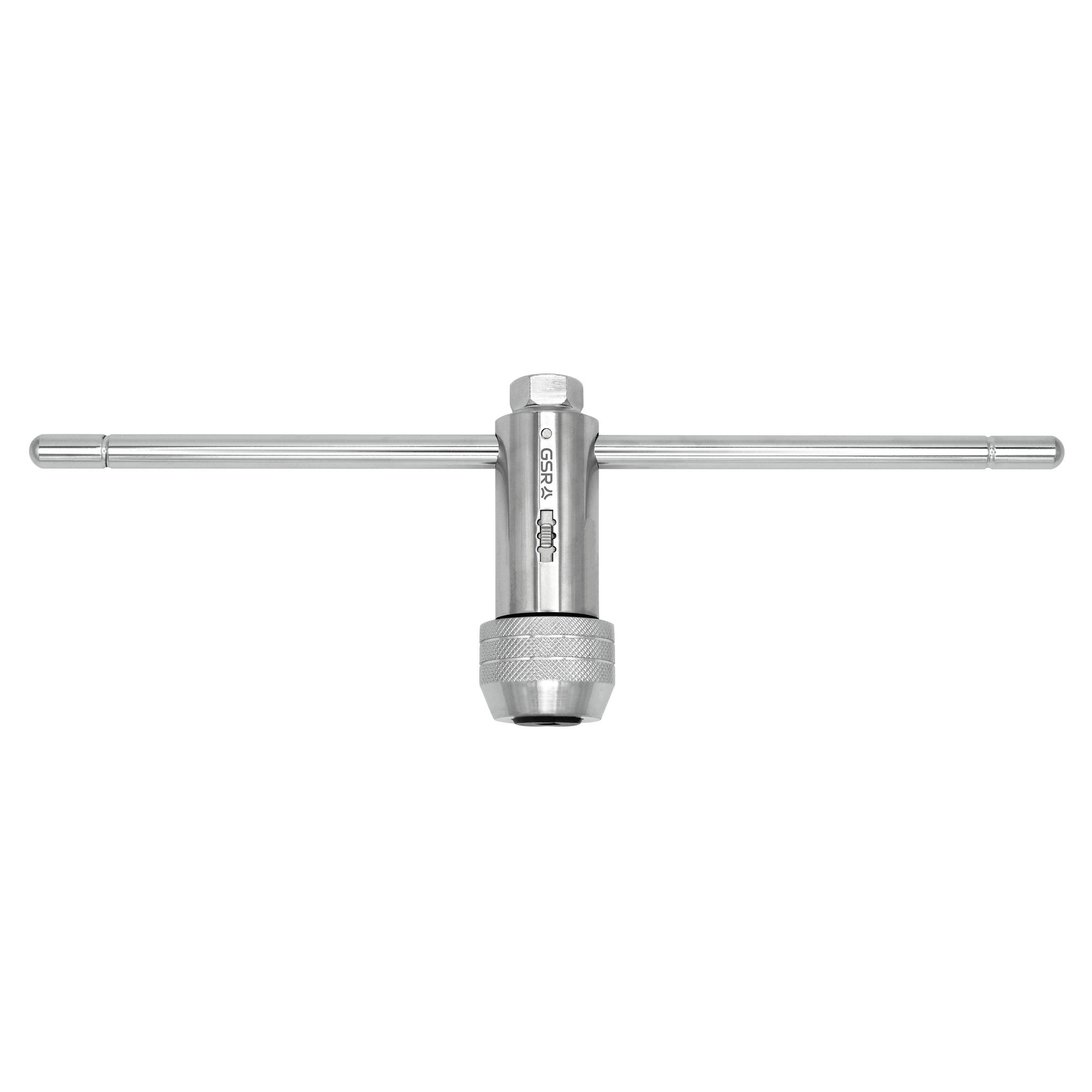

No. 3M 13 – M 208.5 – 12.5 mm116 mmB00612160View product
No. 10 longM 3 – M 102.5 – 5.5 mm250 mmB00614120View product
No. 20 longM 5 – M 124.5 – 8.0 mm300 mmB00614130View product
SizeThreadsSquareLengthItem no.
No. 1M 3 – M 102.5 – 5.5 mm85 mmB00612220View product
No. 1.1/2M 3 – M 122.5 – 8.0 mm110 mmB00612290View product
No. 2M 5 – M 124.5 – 8.0 mm100 mmB00612230View product

Why GSR tool holders?

Centering eye (spirit level)
Recessed in the head, helps align the tap vertically for a perpendicular start
Stainless steel shell
Seamless and fully deburred, for better corrosion resistance
Precision jaws
Precision-eroded, hardened and black oxide; clamp over the entire square for a firm grip and accurate concentricity
New spindle
Investment-cast, with precise fits
Reinforced locking plates
For higher torque and long service life
Ratchet
Clockwise and anti-clockwise with lock function, switched by slide
Cross handle
Adjustable and lockable in three positions
Stainless steel long sleeve
On No. 10 and No. 20, with countersunk locating pins
Tested quality
Every batch with at least 5,000 ratchet cycles at constant torque, engineered in Remscheid

Good to know

What matters is the square on the tool shank: it must be within the clamping range. Suitable tools:

The thread sizes are a guide for hand taps to DIN 352. Taps to other standards, for example machine taps to DIN 371 or DIN 376, may have different square sizes. In that case, measure the square.

  • Recessed centering eye (spirit level) for a perpendicular start
  • Seamless, fully deburred stainless steel shell for better corrosion resistance (new)
  • Precision-eroded, hardened and black-oxide jaws: they clamp over the entire square for a firm grip and accurate concentricity (new)
  • Reinforced locking plates for higher torque and long service life (new)
  • Newly designed investment-cast spindle with precise fits (new)
  • Slide switch for clockwise and anti-clockwise operation, with lock function
  • CNC-machined body with an exact internal fit for the spindle
  • Adjustable chrome-plated cross handle with 3 locating grooves, lockable in three positions
  • Chrome-plated locking nut with knurled surface
GSR tool holder with ratchet: exploded view
  • Drill the tap hole according to the tap drill size table and countersink it slightly
  • Start the tap straight to the hole, with no side pressure for the first turns
  • Use cutting oil, especially on steel and stainless steel
  • In blind holes and tough material, turn back briefly from time to time to break the chips. With a ratchet, simply switch direction
  • Tighten the locking nut firmly so that the tool does not slip
